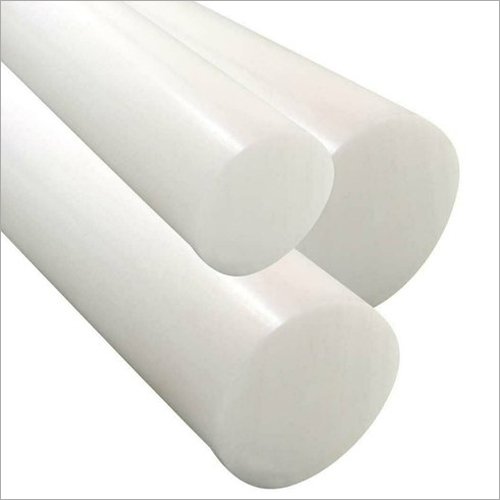

PVDF Solid Rods - 100% Virgin Grade PVDF
High-Performance Engineering Plastic for Critical Applications
PVDF Solid Rods are premium-grade engineering thermoplastic rods manufactured from high-quality Polyvinylidene Fluoride (PVDF). Known for their exceptional chemical resistance, high temperature stability, and superior mechanical strength, PVDF rods are ideal for machining precision components used in aggressive and high-purity environments.
At ASK Innocomp, we supply precision-extruded PVDF Solid Rods designed for durability, dimensional stability, and consistent performance across demanding industrial applications.
Technical Specifications
- Material: Polyvinylidene Fluoride (PVDF)
- Diameter Range: 10 mm to 300 mm (custom sizes available)
- Standard Length: 1 meter / 2 meter (custom lengths available)
- Color: Natural (White)
- Operating Temperature: Up to 140°C
- Density: Approx. 1.78 g/cm³
Technical Specifications & Engineering Parameters
| Parameter | Engineering Specification |
|---|---|
| Available Size Range | Dia 10mm to 200mm (Standard 1000mm Lengths) |
| Nominal Pressure Rating | Precision Machining Stock |
| Operating Temperature Range | -40°C to +120°C |
| End Connection Standards | CNC Machinable |
| Body & Wetted Materials | Homogenous Annealed Solid PVDF |
| Quality & Testing Protocol | 100% Spark Tested (20kV) & Hydrostatic Proof Tested to 1.5x Design Pressure |
| Design Standards | DIN 8077/78, ISO 10931, ASTM D3222, ASME B16.5, DVS 2205 |
Key Features & Operating Advantages
- Severe Chemical Immunity: Machining stock for fabricating semiconductor fluid manifolds, wafer carriers, analytical nozzles, and pump parts.
- Zero Metallic Contamination: Eliminates galvanic corrosion and fluid contamination in pure chemical lines.
- Smooth Anti-Scaling Internal Geometry: Delivers minimum fluid head loss and prevents crystallization of salts.
- Long-Term Thermal & Mechanical Integrity: High creep strength and impact resistance under continuous plant load.
- Ex-Stock Dispatch & Mill Test Certification: Supplied with EN 10204 3.1 batch inspection test certificates.
Recommended Industrial Applications
- Acid Pickling & Galvanizing Lines: Concentrated Hydrochloric Acid (HCl 33%) and Sulfuric Acid (H2SO4) transfer.
- Chemical & Agrochem Manufacturing: Pesticide synthesis, organic acid handling, and raw material dosing skids.
- Electroplating & Surface Finishing: Acid copper, hard chrome, nickel baths, and rinse water piping.
- Water & Wastewater Treatment: Demineralized water (DM) plants, reverse osmosis (RO) loops, and effluent neutralization.
