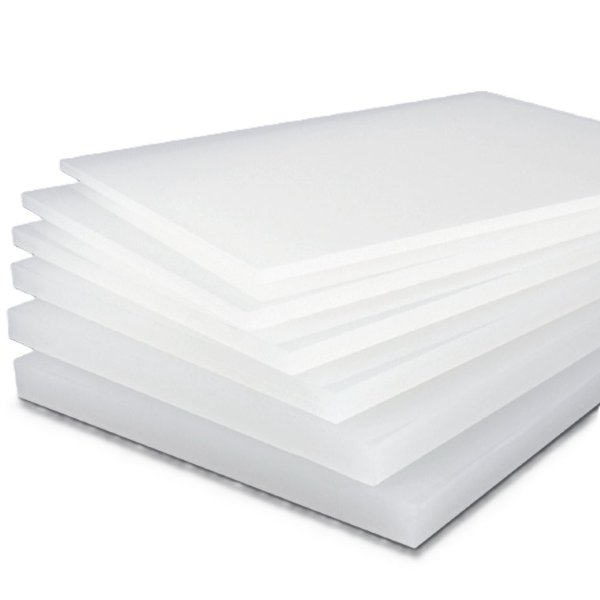

PVDF Sheet - 100% Virgin Grade PVDF
High-Performance Thermoplastic Sheet for Corrosive & High-Purity Applications
PVDF Sheet (Polyvinylidene Fluoride Sheet) is a premium engineering thermoplastic sheet designed for highly aggressive chemical environments and high-temperature applications. Known for its exceptional chemical resistance, superior thermal stability, and high mechanical strength, PVDF sheets are ideal for critical industrial fabrication and lining projects.
At ASK Innocomp, we supply precision-manufactured PVDF sheets suitable for chemical processing plants, pharmaceutical facilities, semiconductor industries, and ultra-pure water systems.
Technical Specifications
Material: Polyvinylidene Fluoride (PVDF)
Thickness Range: 2 mm to 40 mm (custom thickness available)
Sheet Size: Standard 1220 mm x 2440 mm (custom sizes available)
Color: Natural (White)
Operating Temperature: Up to 140°C
Density: Approx. 1.78 g/cm³
Technical Specifications & Engineering Parameters
| Parameter | Engineering Specification |
|---|---|
| Available Size Range | Thickness 2mm to 30mm (Standard 1000x2000mm, 1500x3000mm) |
| Nominal Pressure Rating | Lining & Fabrication Grade |
| Operating Temperature Range | -40°C to +120°C |
| End Connection Standards | Hot Gas & Extrusion Weldable |
| Body & Wetted Materials | Solid PVDF / Polyester or Glass Backed for Dual-Laminate FRP |
| Quality & Testing Protocol | 100% Spark Tested (20kV) & Hydrostatic Proof Tested to 1.5x Design Pressure |
| Design Standards | DIN 8077/78, ISO 10931, ASTM D3222, ASME B16.5, DVS 2205 |
Key Features & Operating Advantages
- Severe Chemical Immunity: Premium fluoropolymer sheets for lining steel and FRP chemical storage tanks, scrubber towers, and reaction vessels.
- Zero Metallic Contamination: Eliminates galvanic corrosion and fluid contamination in pure chemical lines.
- Smooth Anti-Scaling Internal Geometry: Delivers minimum fluid head loss and prevents crystallization of salts.
- Long-Term Thermal & Mechanical Integrity: High creep strength and impact resistance under continuous plant load.
- Ex-Stock Dispatch & Mill Test Certification: Supplied with EN 10204 3.1 batch inspection test certificates.
Recommended Industrial Applications
- Acid Pickling & Galvanizing Lines: Concentrated Hydrochloric Acid (HCl 33%) and Sulfuric Acid (H2SO4) transfer.
- Chemical & Agrochem Manufacturing: Pesticide synthesis, organic acid handling, and raw material dosing skids.
- Electroplating & Surface Finishing: Acid copper, hard chrome, nickel baths, and rinse water piping.
- Water & Wastewater Treatment: Demineralized water (DM) plants, reverse osmosis (RO) loops, and effluent neutralization.
