Compact & Efficient Filtration for Industrial Piping Systems

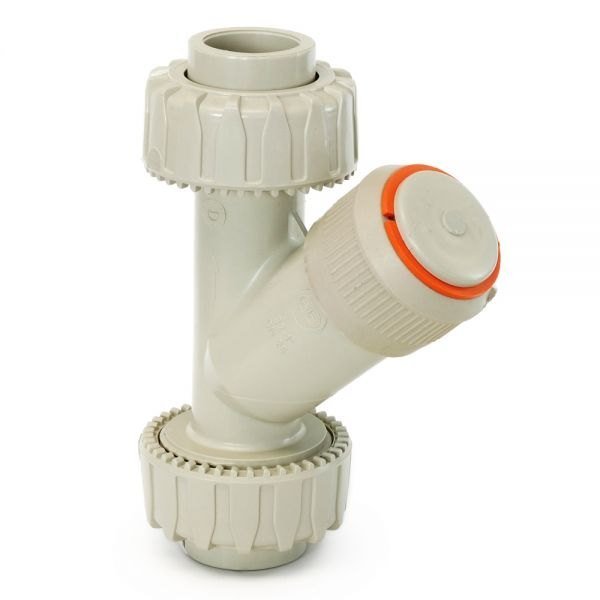

PPH Y Strainer is a thermoplastic filtration device designed to remove solid particles from process pipelines and protect downstream equipment. Manufactured from high-grade Polypropylene Homopolymer (PPH), it offers superior chemical resistance, corrosion-free performance, and long operational life in aggressive industrial environments.
The Y-shaped body design ensures efficient filtration while maintaining compact installation space and minimal pressure drop.
At ASK Innocomp, we manufacture precision-engineered PPH Y Strainers suitable for chemical plants, water treatment systems, pharmaceutical industries, and various industrial applications.
Key Features
✔ Excellent Chemical Resistance – Suitable for acids, alkalis, and corrosive media
✔ Compact Y-Type Design – Ideal for limited installation space
✔ Removable Filter Screen – Easy cleaning and maintenance
✔ Low Pressure Drop – Smooth internal flow design
✔ Corrosion-Free Construction – Long service life without rusting
✔ High Temperature Resistance – Suitable up to 95°C
✔ Secure Flanged Connection – Leak-proof installation
Technical Specifications & Engineering Parameters
| Parameter | Engineering Specification |
|---|---|
| Available Size Range | 1/2" to 4" (DN15 - DN100) |
| Nominal Pressure Rating | PN10 (150 PSI) |
| Operating Temperature Range | 0°C to +95°C |
| End Connection Standards | True Union Socket / Flanged |
| Body & Wetted Materials | Reinforced PPH Screen Mesh with EPDM/FKM Cap Seal |
| Quality & Testing Protocol | 100% Spark Tested (20kV) & Hydrostatic Proof Tested to 1.5x Design Pressure |
| Design Standards | DIN 8077/78, ISO 10931, ASTM D3222, ASME B16.5, DVS 2205 |
Key Features & Operating Advantages
- Severe Chemical Immunity: Heavy-duty Y-pattern chemical strainer protecting sensitive dosing pumps and instruments from suspended solids.
- Zero Metallic Contamination: Eliminates galvanic corrosion and fluid contamination in pure chemical lines.
- Smooth Anti-Scaling Internal Geometry: Delivers minimum fluid head loss and prevents crystallization of salts.
- Long-Term Thermal & Mechanical Integrity: High creep strength and impact resistance under continuous plant load.
- Ex-Stock Dispatch & Mill Test Certification: Supplied with EN 10204 3.1 batch inspection test certificates.
Recommended Industrial Applications
- Acid Pickling & Galvanizing Lines: Concentrated Hydrochloric Acid (HCl 33%) and Sulfuric Acid (H2SO4) transfer.
- Chemical & Agrochem Manufacturing: Pesticide synthesis, organic acid handling, and raw material dosing skids.
- Electroplating & Surface Finishing: Acid copper, hard chrome, nickel baths, and rinse water piping.
- Water & Wastewater Treatment: Demineralized water (DM) plants, reverse osmosis (RO) loops, and effluent neutralization.
