PPH Pipes - 100% Virgin Grade PPH
High-Performance PPH for Corrosive Applications

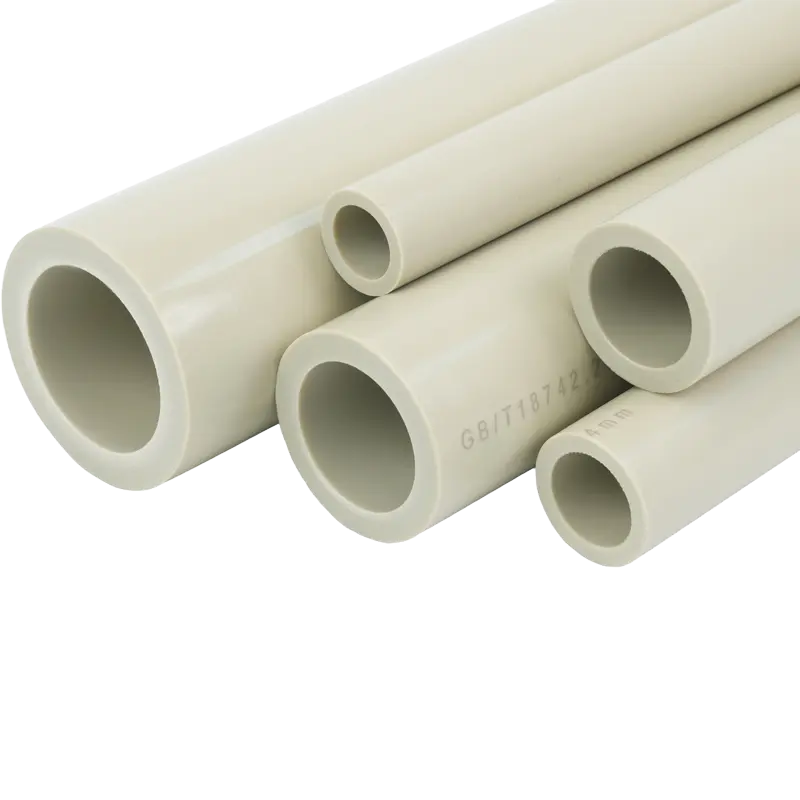

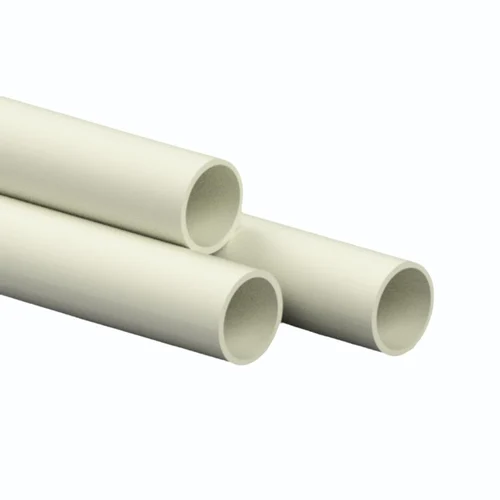

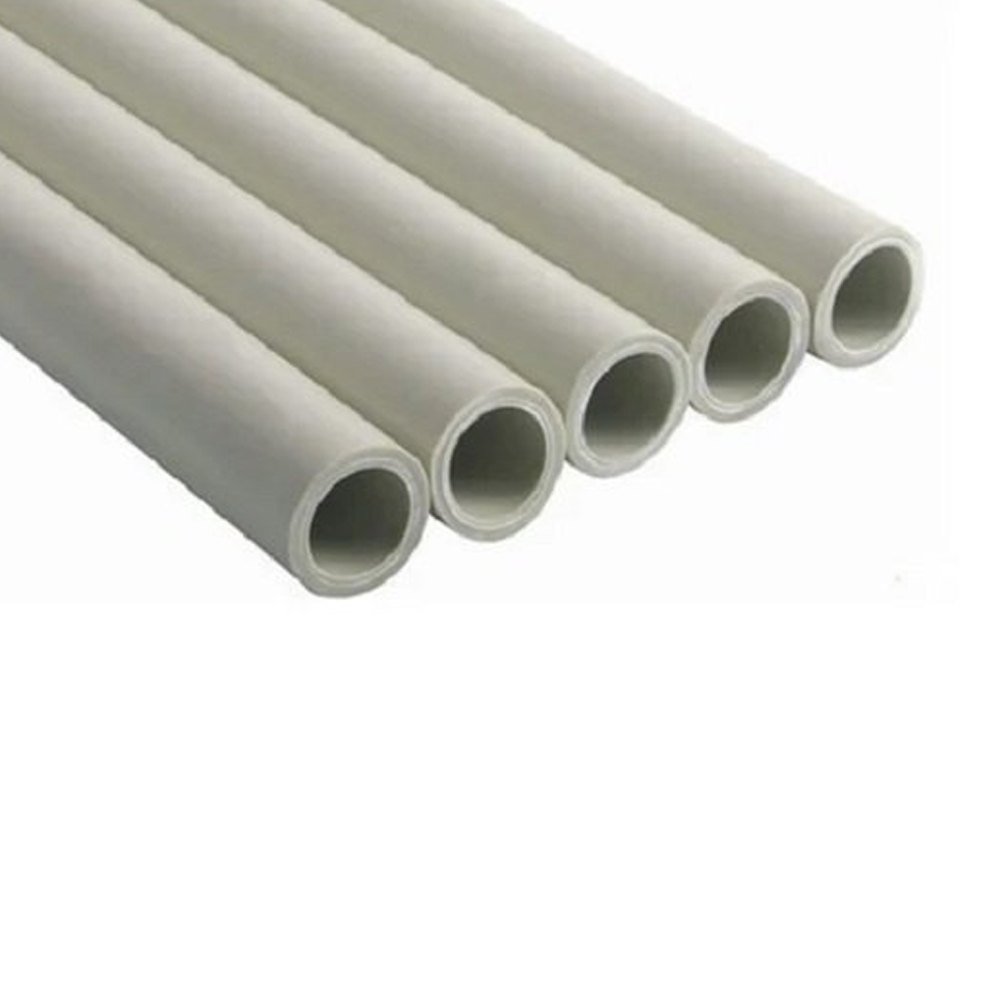

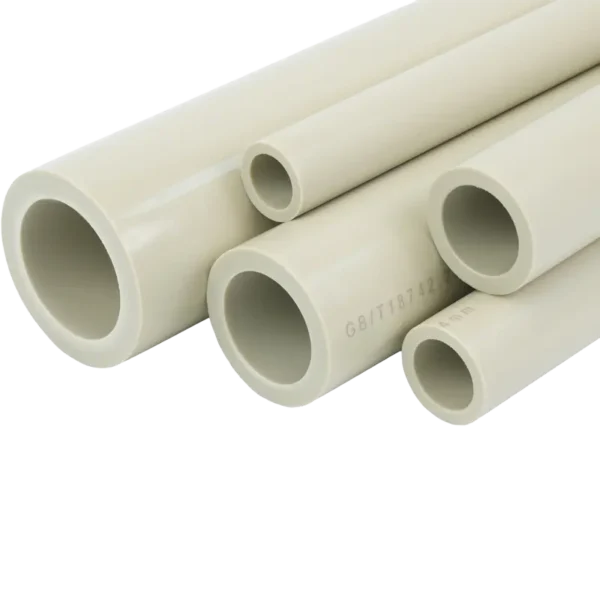

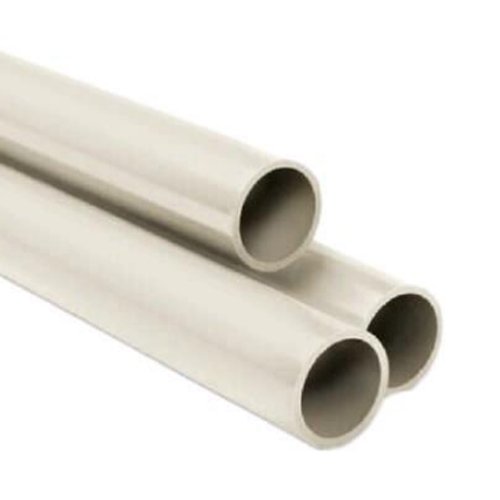

PPH Pipe (Polypropylene Homopolymer Pipe) is a premium-grade thermoplastic piping solution designed for handling aggressive chemicals, high temperatures, and demanding industrial environments. Manufactured from high-quality polypropylene homopolymer resin, PPH pipes offer excellent chemical resistance, superior mechanical strength, and long service life.
At ASK Innocomp, we provide precision-engineered PPH piping systems suitable for chemical processing plants, water treatment facilities, pharmaceuticals, electroplating units, and various industrial applications.
Technical Specifications & Engineering Parameters
| Parameter | Engineering Specification |
|---|---|
| Available Size Range | 20mm to 400mm OD (Standard 5m Lengths) |
| Nominal Pressure Rating | PN6, PN10, PN16 |
| Operating Temperature Range | 0°C to +95°C |
| End Connection Standards | Plain Ends for Butt & Socket Fusion |
| Body & Wetted Materials | Extruded Virgin PPH according to DIN 8077/8078 |
| Quality & Testing Protocol | 100% Spark Tested (20kV) & Hydrostatic Proof Tested to 1.5x Design Pressure |
| Design Standards | DIN 8077/78, ISO 10931, ASTM D3222, ASME B16.5, DVS 2205 |
Key Features & Operating Advantages
- Severe Chemical Immunity: Continuous smooth-bore extrusion pipe offering high hoop stress resistance, low thermal conductivity, and anti-scaling surface.
- Zero Metallic Contamination: Eliminates galvanic corrosion and fluid contamination in pure chemical lines.
- Smooth Anti-Scaling Internal Geometry: Delivers minimum fluid head loss and prevents crystallization of salts.
- Long-Term Thermal & Mechanical Integrity: High creep strength and impact resistance under continuous plant load.
- Ex-Stock Dispatch & Mill Test Certification: Supplied with EN 10204 3.1 batch inspection test certificates.
Recommended Industrial Applications
- Acid Pickling & Galvanizing Lines: Concentrated Hydrochloric Acid (HCl 33%) and Sulfuric Acid (H2SO4) transfer.
- Chemical & Agrochem Manufacturing: Pesticide synthesis, organic acid handling, and raw material dosing skids.
- Electroplating & Surface Finishing: Acid copper, hard chrome, nickel baths, and rinse water piping.
- Water & Wastewater Treatment: Demineralized water (DM) plants, reverse osmosis (RO) loops, and effluent neutralization.
