Comprehensive Guide to PPH & PVDF Industrial Thermoplastics

In modern chemical processing, pharmaceutical synthesis, water treatment, and metallurgical industries, selecting the proper piping, valve, and containment materials is critical to ensure plant safety, prevent catastrophic leaks, and extend equipment operating lifespan. ASK Innocomp Pvt. Ltd. is a premier manufacturer, stockist, and solutions provider of high-grade Polypropylene Homopolymer (PPH) and Polyvinylidene Fluoride (PVDF) fluid handling systems compliant with international standards including DIN 8077/8078, ISO 10931, ASTM D3222, and DVS 2205.

Material Properties: PPH vs. PVDF Comparison Matrix

Understanding the mechanical, thermal, and chemical distinctions between Polypropylene Homopolymer and Fluoropolymer PVDF ensures optimal material selection for specific operating parameters:

Property / Parameter	PPH (Polypropylene Homopolymer)	PVDF (Polyvinylidene Fluoride)
Chemical Classification	Semi-crystalline Polyolefin Thermoplastic	High-Purity Fluoropolymer
Operating Temperature Range	0°C to +95°C (+105°C peak)	-40°C to +120°C (+140°C peak)
Density (g/cm³)	0.91 g/cm³ (Lightweight)	1.78 g/cm³ (High Density & Mass)
Tensile Strength at Yield	32 - 36 MPa	50 - 55 MPa
Flame Retardancy	UL 94 HB (Standard)	UL 94 V-0 (Self-Extinguishing)
Abrasion & Wear Resistance	Good for slurries & solids	Outstanding (Superior to metal & PTFE)
Purity & Leachability	Standard Industrial Purity	Ultra-High Purity (Semiconductor grade, zero additives)
Primary Joining Methods	Socket Fusion, Butt Fusion, Hot Air Welding	Socket Fusion, Butt Fusion, IR (Infrared), Beadless

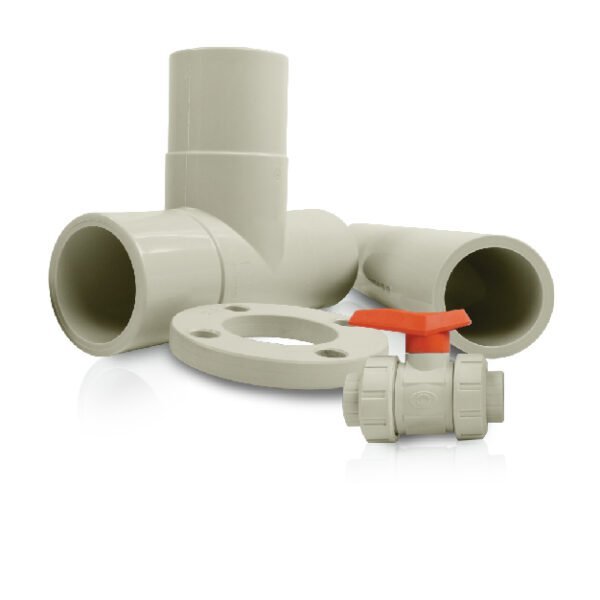

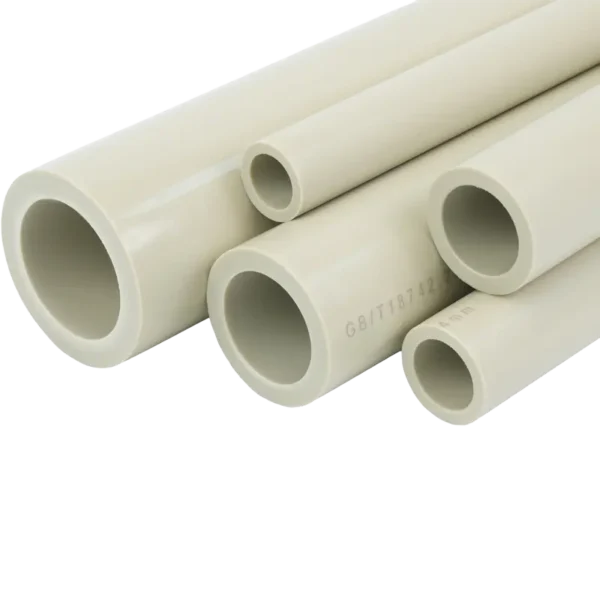

PPH Solutions: Advanced Polyolefin Piping & Flow Control

Polypropylene Homopolymer (PPH) is engineered with a high-crystallinity beta-nucleated molecular structure, providing significantly higher stiffness, impact strength, and chemical stability than standard commercial polypropylene (PP-C or PP-R). PPH is the worldwide material of choice for industrial acid transmission lines, metal pickling plants, and chemical effluent systems.

Key Benefits & Applications of PPH Systems:

• Broad Chemical Resistance: Immune to aggressive inorganic salts, Caustic Soda (NaOH 50%), Hydrochloric Acid (HCl 33%), Phosphoric Acid (H3PO4 85%), and dilute sulfuric acid solutions.
• Smooth Internal Surface (Low Hazen-Williams Coefficient): Prevents scaling, sediment deposition, and mineral encrustation, maintaining full flow velocity and reducing pump power consumption over decades.
• High Creep Resistance & Long-Term Hydrostatic Strength: Rated for continuous internal pressure (PN10 & PN16 / SDR 11 & SDR 17.6) at elevated temperatures up to 95°C according to DIN 8077/8078 curves.
• Lightweight & Easy Installation: 1/8th the weight of ductile iron and carbon steel piping, significantly lowering structural load on pipe racks and simplifying overhead plant installation.

PVDF Solutions: High-Purity Fluoropolymer Systems

Polyvinylidene Fluoride (PVDF) represents the pinnacle of fluoropolymer engineering for extreme chemical corrosiveness and ultra-high purity fluid containment. Produced from 100% virgin medical and electronic grade PVDF resins without plasticizers, lubricants, or flame retardant fillers, PVDF components deliver extraordinary chemical inertness across the entire pH scale from 0 to 12.

Extreme Duty Capabilities of PVDF:

• Severe Oxidizing Acids: Unmatched resistance against hot Nitric Acid (HNO3 65%), concentrated Sulfuric Acid (H2SO4 98%), Chromic Acid, Hydrofluoric Acid (HF), and wet/dry Chlorine gas.
• UV & Weathering Immunity: Inherently resistant to solar ultraviolet radiation, ozone oxidation, and severe coastal climatic conditions without degrading or requiring protective exterior coatings.
• Zero Microbial Growth & Ultra-Low Extractables: Compliant with FDA 21 CFR 177.2510, USP Class VI, and semiconductor SEMI standards for Ultra-Pure Water (UPW), active pharmaceutical ingredient (API) synthesis, and dialysate distribution loops.
• Outstanding Mechanical Toughness: Combines high tensile strength with exceptional resistance to cyclic mechanical pressure shocks, fluid hammer, and thermal cycling from -40°C to +120°C.

Industrial Valves, Strainers & Flow Instrumentation

ASK Innocomp manufactures and supplies a comprehensive suite of precision thermoplastic flow control valves engineered for zero leakage, low operating torque, and extended maintenance-free cycles:

• True Union Ball Valves: Dual union ends allow in-line maintenance without dismantling the entire piping run. Features full-bore fluid flow, solid PTFE seats, and chemically resistant FKM (Viton) or EPDM backing O-rings.
• Thermoplastic Butterfly Valves: Available in wafer and lug configurations with heavy-duty gear operators for fine throttling control or ergonomic lever handles with multi-position locking plates.

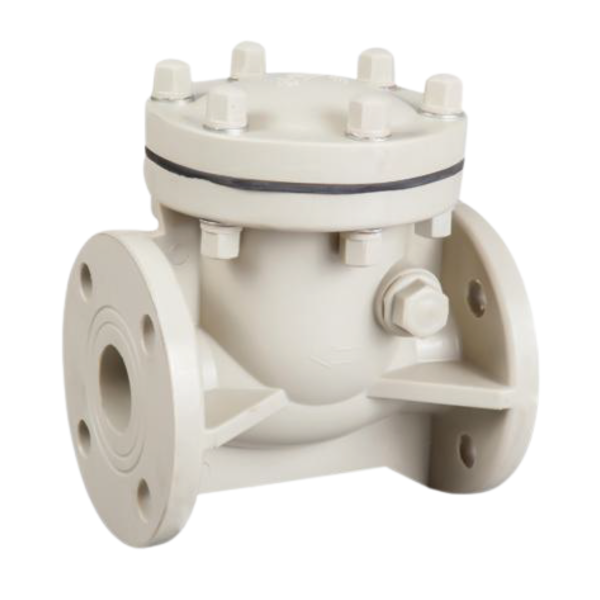

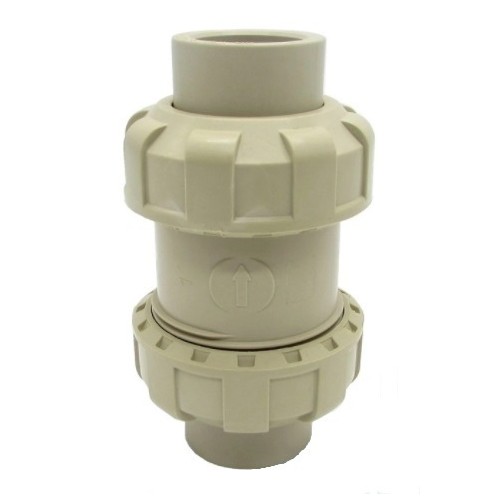

• Swing Check & Ball Check Valves: Weighted flapper and precision-ground solid thermoplastic ball designs ensure immediate backflow prevention with minimum cracking pressure and zero metallic wetted parts.
• Y-Type & T-Type Chemical Strainers: Removable heavy-duty PVDF and PPH perforated mesh filter baskets capture suspended solids, pump scale, and foreign debris to protect sensitive flow meters, dosing pumps, and heat exchangers.

Thermoplastic Fusion Welding & Fabrication Guidelines

The structural integrity and leak-proof performance of thermoplastic piping depends on proper thermal fusion techniques executed in accordance with DVS (German Welding Society) standards:

• Socket Fusion Welding (DVS 2207-11 & DVS 2207-15): Uses precision electrically heated bushes and spigots at 260°C ± 10°C to melt the outer pipe surface and inner fitting socket simultaneously, creating a monolithic homogenous joint upon insertion.
• Butt Fusion Welding: Ideal for larger diameter piping (OD 63mm to 400mm). The pipe ends are planed flat, heated against a teflon-coated heating plate, and brought together under controlled hydraulic joining pressure.
• Hot Air Extrusion & Rod Welding: Used for custom vessel fabrication, tank manholes, nozzle reinforcement pads, and segmented fitting construction.

Quality Assurance & Testing Standards

Every PPH and PVDF product supplied by ASK Innocomp undergoes rigorous multi-stage quality inspection at our state-of-the-art manufacturing facility:

• High-Voltage Spark Testing (15,000V - 20,000V): 100% verification of all fabricated seams, liner joints, and molded bodies to detect micro-pinholes, porosity, or hairline voids.
• Hydrostatic Proof Testing: Pressure tested at 1.5x designated design pressure in compliance with ASME and DIN testing protocols.
• Dimensional Laser Verification: Precise wall thickness, roundness, and flange hole tolerances checked against DIN EN ISO specifications.
• Material Test Certificates: Supplied with EN 10204 3.1 chemical batch test reports and raw material origin certificates upon request.
